One-component Epoxy Adhesives

Stable quality.
Excellent heat resistance, durability and chemical resistance!

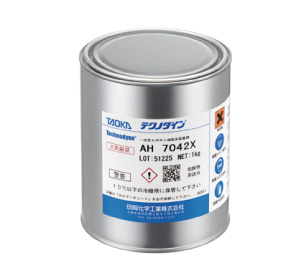

Technodyne® AH is a one-component epoxy-type adhesive. Since it does not require the mixture of the main agent and the curing agent as a two-component adhesive does when it is used, there are no measurement mistakes, and a constant, stable quality is ensured.
Once cured, it delivers excellent adhesive strength, heat resistance, durability and chemical resistance. We offer from low-temperature curing grades with good transparency to grades with excellent reflow resistance suited to the bonding of LCP parts and materials with poor adhesiveness.
Please select the optimal product from the variety of types.

Applications

Bonding and sealing of electronic parts

Sealing and fixing of relay parts
Fixing of coil cores, parts and magnets
Sealing and fixing of switch parts
Fixing of motor parts
Sealing and fixing of connector parts
Fixing of various chip parts

Other applications

Base resin for conductive pastes
Fixing of optoelectronic parts
Reinforcing applications for polishing materials

Technical data on Technodyne® AH

	Product name	Standard color	Viscosity (Pa･s/25℃)	Thixotropic index (25℃)	Curing condition (℃*min)	Packaging	Application
Low-temperature curing type	AH6021W^*	Beige	15	1	80*60	1 kg can	Low-temperature curing type
Standard curing type	AH3063R	Red	55	3	100*30	1 kg can	Coil winding fixing
	AH3031T^*	White	23	1	100*30	1 kg can 5 kg can	Bonding of electronic parts, and sealing and fixing of switches and relays
	AH1062K^*	Black	60	2	100*30	1 kg can
	AH1052K^*	Black	30	1	100*30	5 kg can
	AH3052X^*	Black	35	1	100*30	5 kg can
	AH1042K^*	Black	60	2	100*60	1 kg can	Sealing and fixing of relays, for fixing of LCP parts and materials
	AH8042K^*	Black	50	2	100*60	5 kg can
High adhesive strength	AH3021WH	Pale yellowish white	25	1	130*20	1 kg can	Fixing of coil winding, ceramics, etc.
High adhesive strength	AH3053K^*	Black	60	4	120*30	5 kg can	Fixing of coil winding, ceramics, etc.

*Defoamed products
